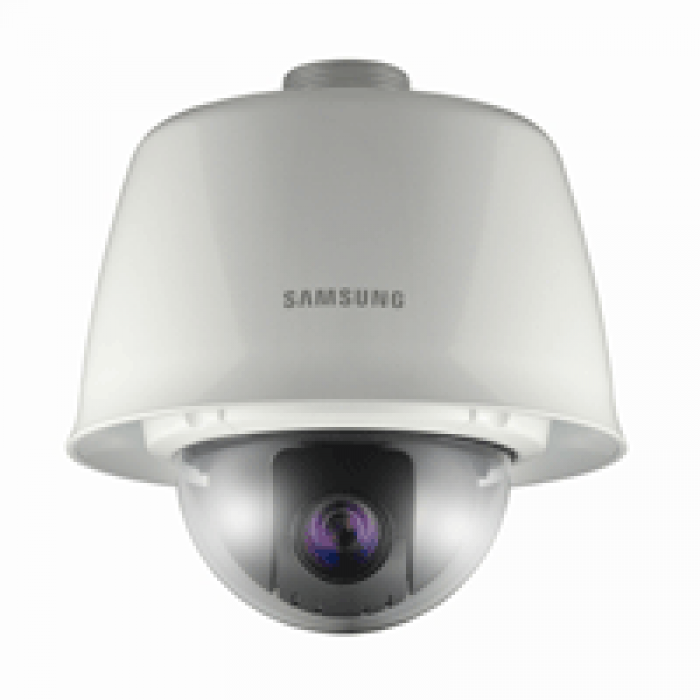

Brand | Samsung | |
---|---|---|
Model Code | SCP-3120VHP | |
Chip Inch Size | 1/4 | |
Colour Type | Colour / Monochrome | |
Resolution TVL | 600 | |
Dome Type | PTZ | |
Sensitivity lux | 0.03 @ F1.67 | |
Pan Speed o/ sec | 650 | |
Tilt Speed o/ sec | 650 | |
Indoor/Outdoor | Outdoor | |
Mount Type | Pendant | |
Focal length | 3.6 ~ 44.3 | |
Rotation Angleso | 360 pan, -5 ~ +185 | |
Presets | 255 | |
Back Light Compensation | Yes | |
Auto Gain Control | Yes | |
White Balance | Yes | |
Electronic Shutter range | 1/60 ~ 1/10,000 | |
S/ N (Signal/ Noise) Ratio dB | 52 | |
Synchronisation | Internal / Line-lock | |
Signal Mode | PAL / NTSC | |
Video Output | 1 Vpp, 75 Ohms | |
Zoom Ratio | 12x (Optical), 16x (Digital) | |
Electrical Specifications |
Voltage: 24 V AC Power Consumption: 45 W |
|
Network Properties |
Interface: RS-485, Coaxial control Control: PTZ |
|
Physical Specifications |
Dimensions mm: 200 x 203 Weight g: 2,400 |
|
Environmental Specifications |
Operating Temp oC: -50 ~ +50 Operating Humidity %: 0 ~ 90 |
|
Model Info | The SCP-3120/3120V/3120VH PTZ dome cameras feature 12x optical zoom, clear color images at 600TV lines resolution. With high-speed pan and tilt operations at 650?per second, these cameras capture broad areas quickly. Especially, with SCP-3120V/3120VH's vandal-resistant body, these offer unparalleled durability and exceptional anti-shock protection. In addition, these models include a WDR, VPS, Coaxial control and intelligent video analytics function for vivid images and user convenience. |
